Hybrid 5G Cellular and Satellite Solution

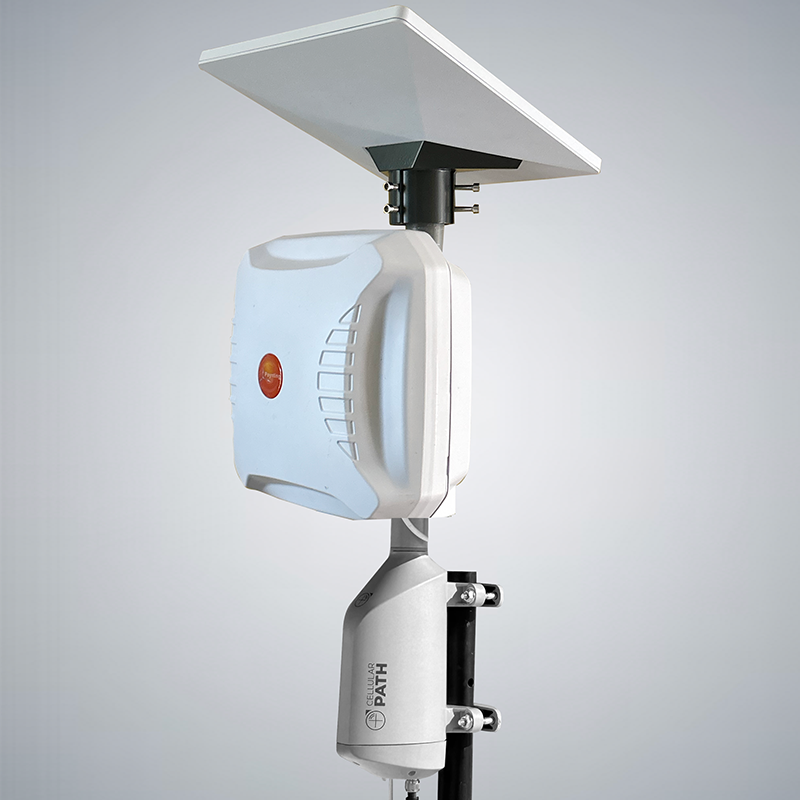

Starlink Cellular Path SOCA

Hybrid SOCA for Starlink and 5G Cellular

Self-optimizing cellular antenna rotator finds the strongest 5G Cellular signal and uses Satellite as a backup or Primary

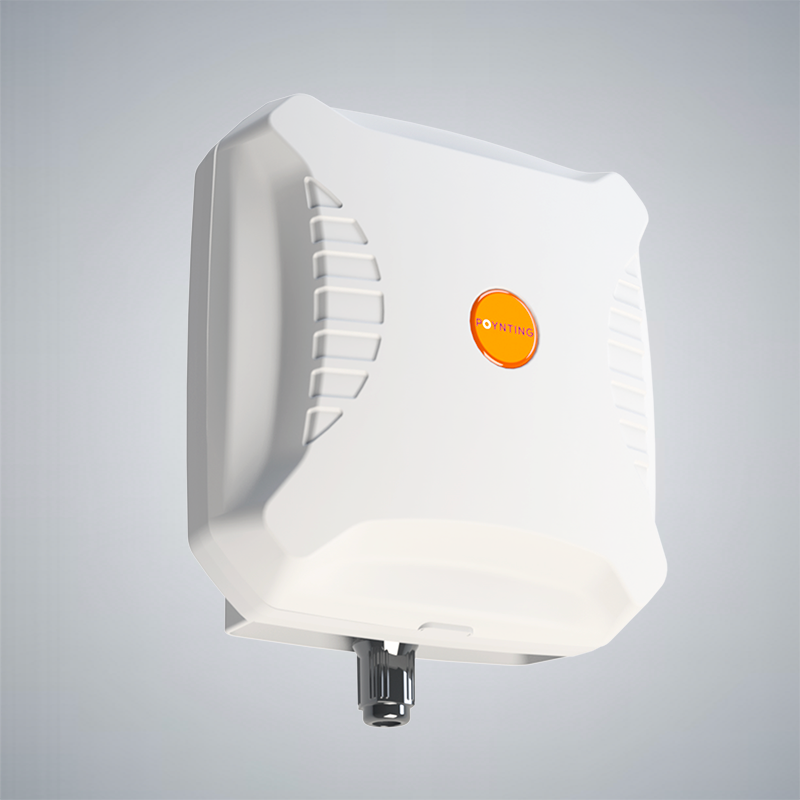

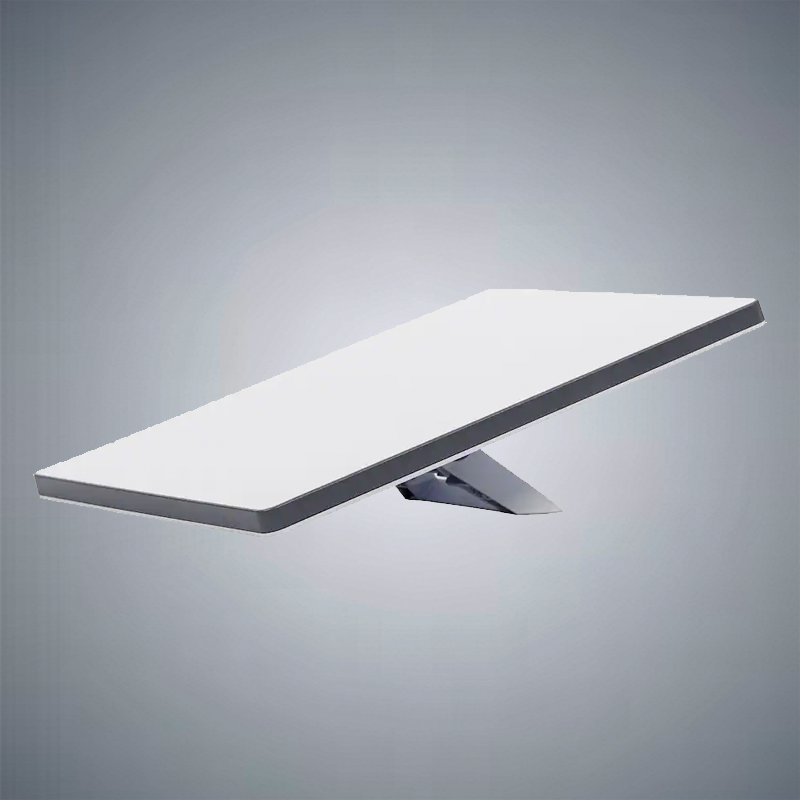

This Cellular Path self-optimizing cellular antenna system, or “Hybrid SOCA”, is a complete system for the purpose of auto-calibrating and pointing an externally mounted MIMO cellular antenna and 5G router toward cellular towers while also using Starlink as a backup or primary internet source. In this version, we use a Poynting 4×4 MIMO Directional Antenna with a Teltonika or Peplink router, we then add a Starlink MINI and offer bonding of the two sources as well.

  • Designed for Fixed Wireless Access applications
  • Use Starlink as the primary or secondary source.
  • Remotely manage via our App or Web Portal
BASIC SETUP
WHERE TO BUY
Share Link:

How to use the App

Cell path app

Download our Free App

Create an Account

Create location and add a device

Select SOCA, choose your router manufacturer and model & follow instructions

Tech Specs

The cellular Path ROTATOR is what we refer to as the Backbone of they system. Built to last. Designed to be on the roof forever. Here are the details.

PHYSICAL SPECIFICATIONS

  • Casing material
  • Device (W x H x D)
  • Box (W x H x D):
  • Weight (product)
  • Weight (complete box)
  • Mounting options
  • Pole Length
  • Wind Rating
  • Max. Antenna weight
  • Die cast aluminum and glass filled polycarbonate
  • 5.15 x 11.5 x 3.9 inches
  • 15.6 x 7.7 x 7 inches
  • 5 lbs
  • 8 lbs
  • 2 x V-Bolts with Flanged Nuts
  • 14 Inches
  • 60 mph Sustained winds. Up to 90 mph Wind Gusts
  • 100lbs

POWER

  • Connector
  • Input voltage range:
  • Power consumption
  • 4 PIN M12
  • 12V
  • 1A

OPERATING ENVIRONMENT

  • Operating temperature
  • Operating humidity
  • Ingress Protection Rating
  • UV Resistance
  • Salt Spray
  • -20° F to 140° F
  • Up to 100%
  • IPX2
  • UL 746C (F1 long-term UV exposure)
  • ASTM 8117
The cellular Path CONTROLLER is the brains of the operation. This is where all the magic happens so take care of it.

PHYSICAL SPECIFICATIONS DEMO

  • Casing material
  • Device (W x H x D)
  • Weight (product)
  • PC/ABS Blend
  • 6 x 3.2 x 1.3 inches
  • 0.5 lbs

WIRELESS

  • Wireless mode
  • Wi-Fi security
  • SIM
  • RF Connectors
  • ESP32-S3 supports a 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth
  • WPA2-Enterprise: PEAP, WPA2-PSK
  • 1 x SIM slot (Mini SIM – 2FF)
  • SMA Jack, Female Socket

POWER

  • Power Adapter
  • Input voltage range:
  • Power consumption
  • Connector from Rotator
  • 12V, 2A power adapter (2.1mm x 5.5mm center positive)
  • 12V
  • 2A
  • 1 x 4-pin power connector

OPERATING ENVIRONMENT

  • Operating temperature
  • Operating humidity
  • -10° F to 100° F
  • Up to 100%
Download everything you need to setup and understand the SOCA system.

SPEC SHEETS

USER MANUAL

Whats in the BOX?

Standard Kit contents

  • 1 x SOCA Rotator and top pole
  • 1 x SOCA Controller
  • 2 x clamp shell brackets, v-bolts and nuts
  • 1 x 50ft Power Cable (Extensions available)
  • 1 x Power Adapter (12v)
Cellular Path Rotator

1 x Rotator

1 x Pole and parts

Cellular Path No Modem Controller

1 x No-modem SOCA Controller

Cellular Path Cable

1 x 50ft Power Cable

Cellular Path Power Adapter

1 x 12V Power Adapter

Cellular Path Clamps

2 x Mounting Bracket

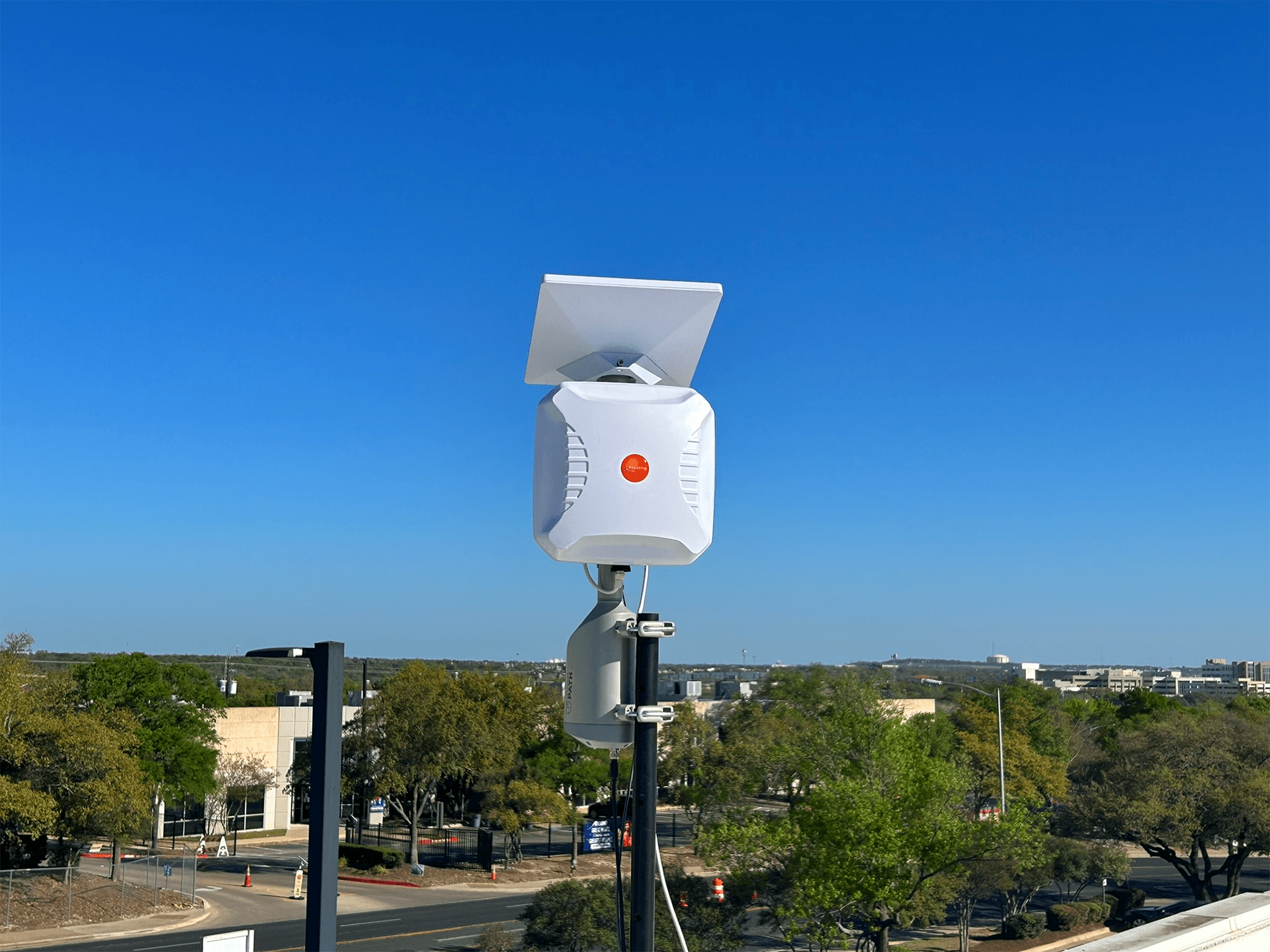

Starlink Mini and Cellular Path SOCA
